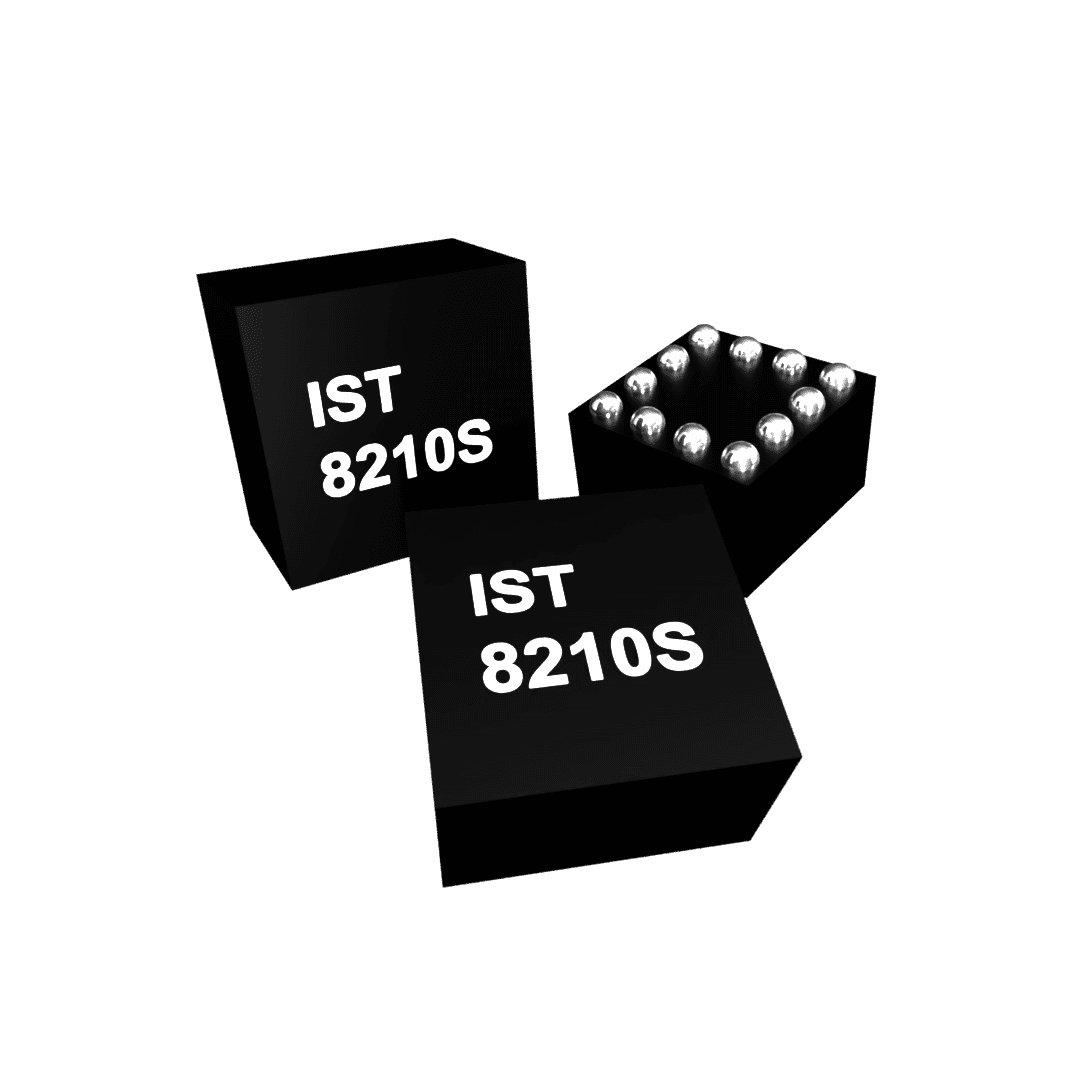

IST8210S
Preliminary
Digital Magnetic Angle Sensor
IST8210S is a digital magnetic angle sensor utilizing Anisotropic Magnetoresistance (AMR) to detect the orientation of a magnetic field. It is a highly integrated chip featuring magnetic sensors and a control ASIC with a 14-bit ADC output.
Parameters
Magnetic Range (mT)32
VDD (V)2.4 - 3.6
InterfaceI2C
Operating Temp (°C)-40 ~ 85
Package12-LGA
Sensitivity (mV/deg)
Power Cons.1.3 mA @ 1 KHz
