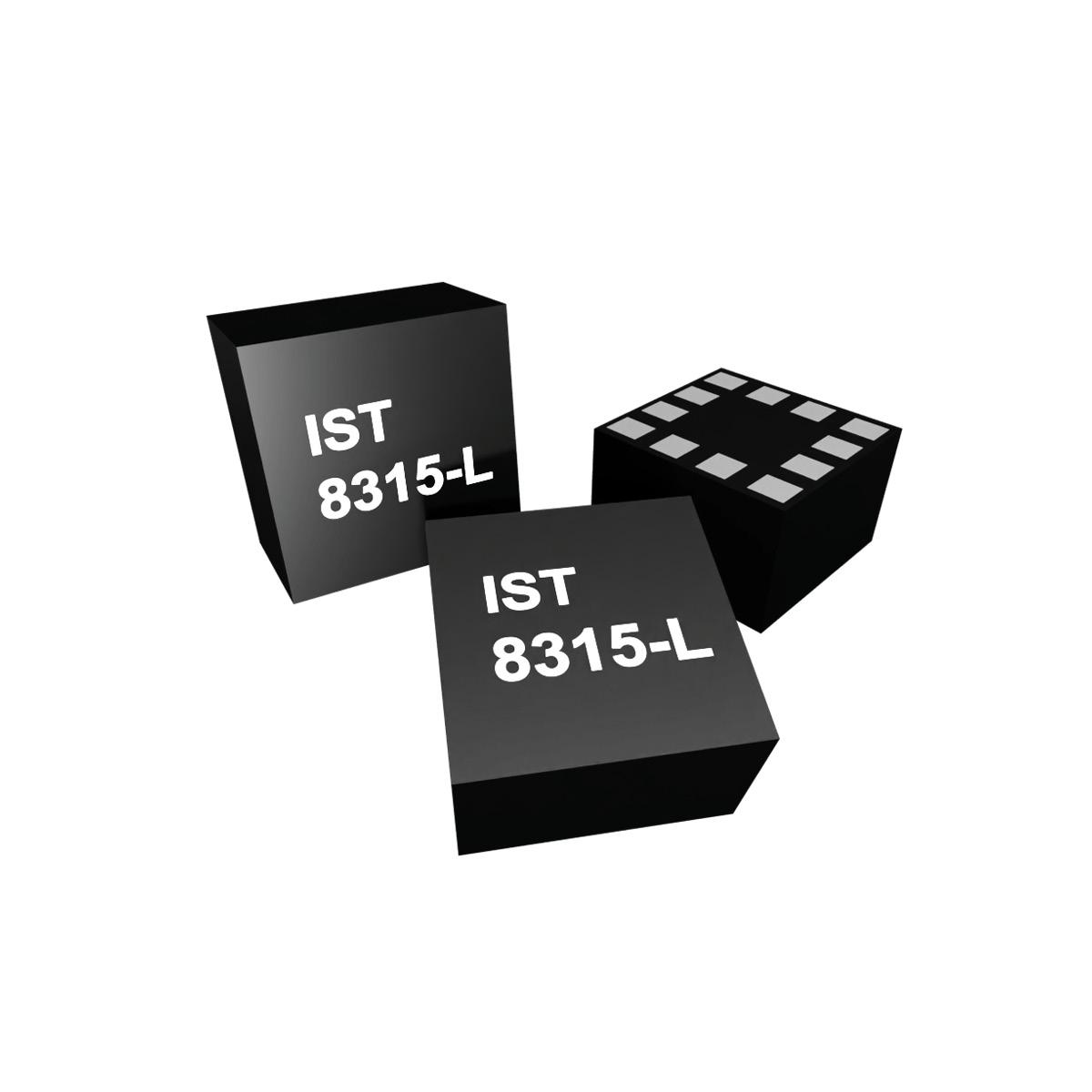

IST8315-L
Active
3D AMR Magnetometer
3-axis AMR magnetometer in an ultra-compact 12-pin LGA package, featuring I2C digital output, built-in precision temperature compensation, and a 32-depth FIFO buffer
Parameters
Magnetic Range (mT)1
VDD (V)2.4 - 3.6
IDD (µA @ 50Hz)400
Sensitivity (LSB/µT)3.3
Max ODR (Hz)1000
Resolution (bits)14
InterfaceI2C
Operating Temp (°C)-40 ~ 85
Package12-LGA
