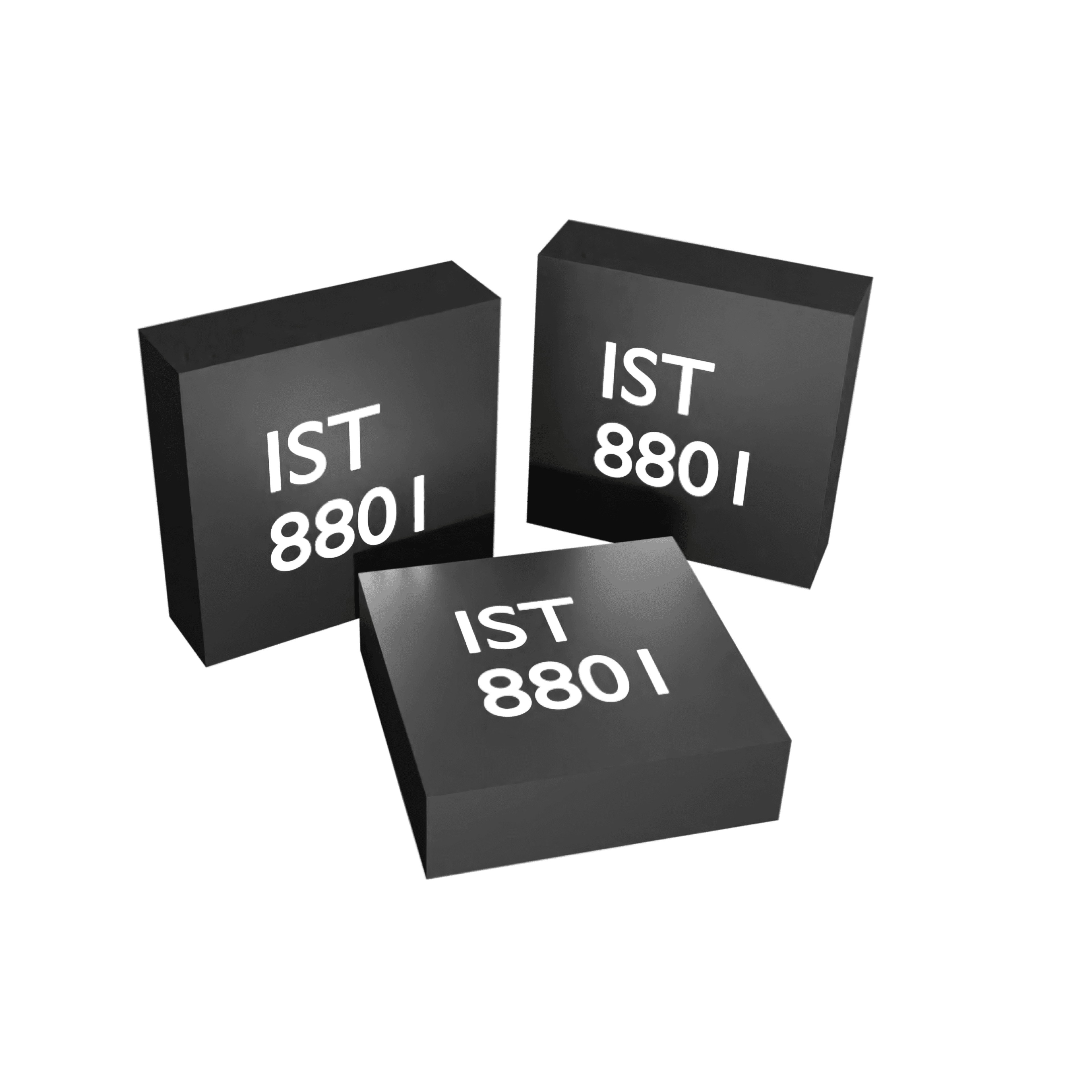

IST8801
Active
Digital Linear Hall Sensor
An ultra-compact digital linear Hall-effect sensor designed for precise external magnet and displacement detection.
Parameters
Magnetic Range (mT)40.96
VDD (V)1.8 - 3.6
IDD (µA @ 50Hz)180
Max ODR (Hz)500
InterfaceI2C
Operating Temp (°C)-40 ~ 85
Package9-WLCSP
Resolution (µT/LSB)0.3125
