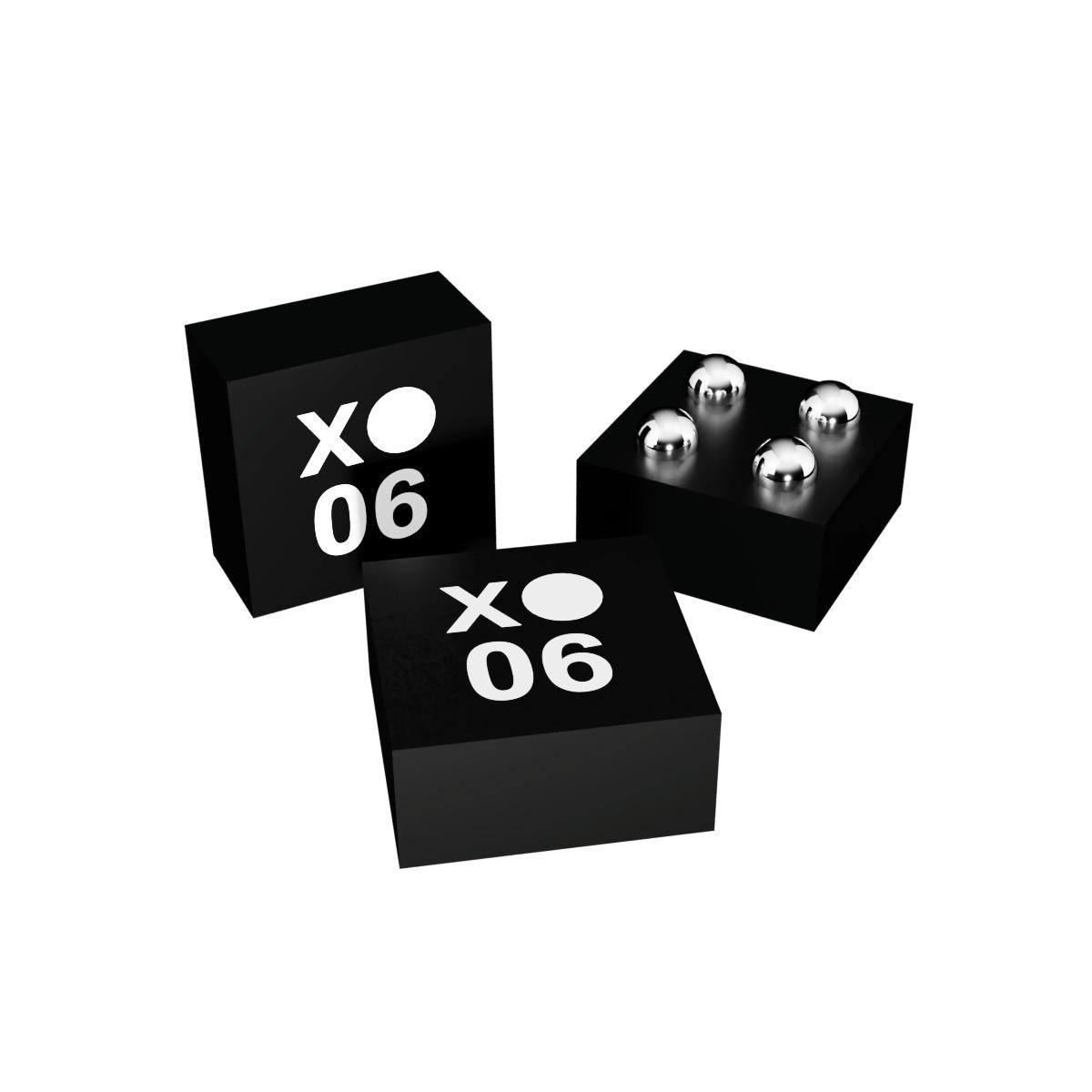

IST8306
Active
3D AMR Magnetometer
Monolithic 3-axis AMR magnetic sensor with I2C digital output and built-in temperature compensation
Parameters
Magnetic Range (mT)3
VDD (V)1.65 - 1.95
IDD (µA @ 50Hz)1200
Sensitivity (LSB/µT)3.3
Max ODR (Hz)200
Resolution (bits)16
InterfaceI2C
Operating Temp (°C)-20 ~ 85
Package4-WLCSP
