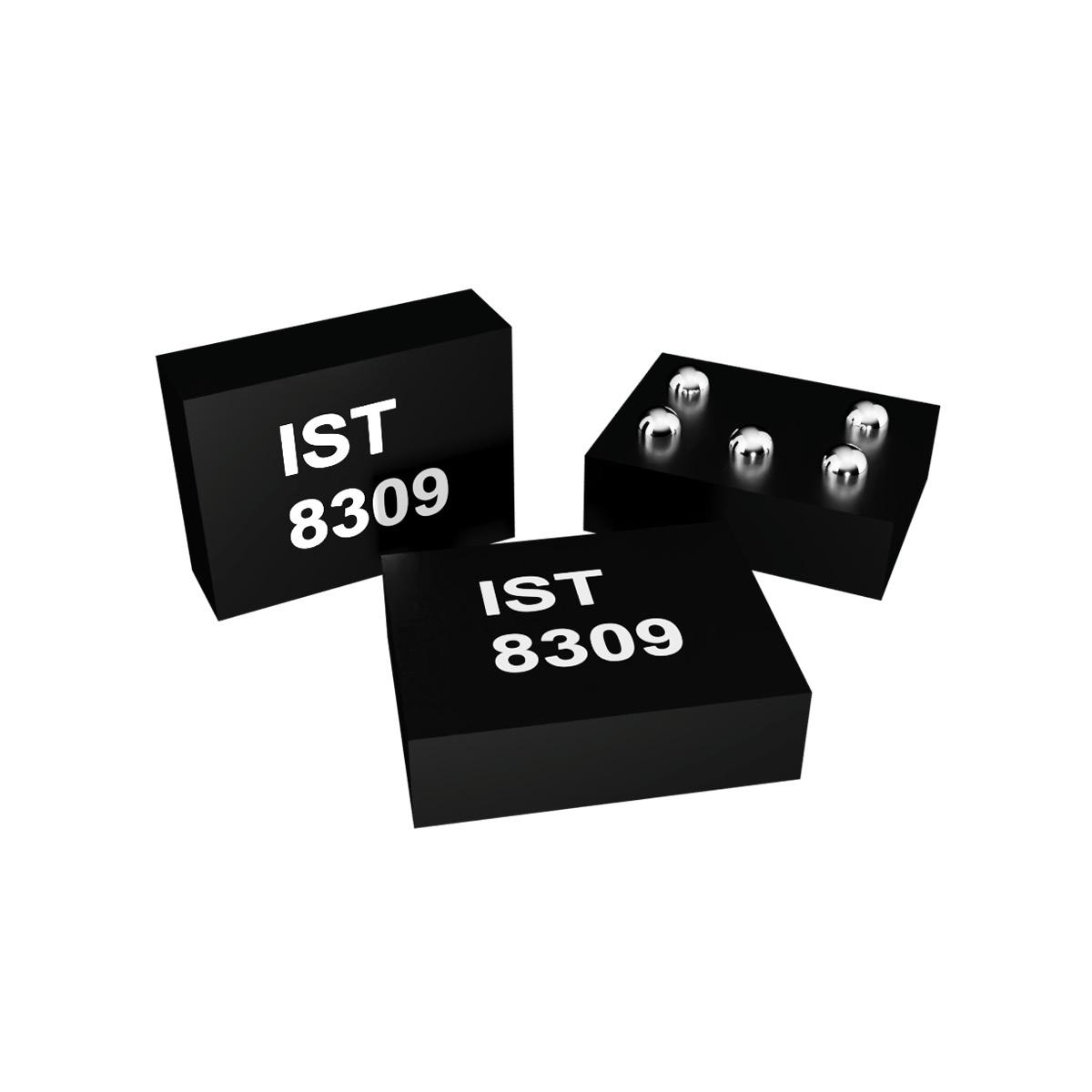

IST8309
Active
3D Programmable Vertical Hall
Ideal solution for space-constrained environments, providing precise spatial feedback for the next generation of smartphones, wearable technology, and IoT devices.
Parameters
VDD (V)1.7 - 3.6
Resolution (µT/LSB) 2.5
IDD (µA)50 µA @ 10 Hz
Magnetic Range (mT)30-200
Max ODR (Hz)500
InterfaceI2C
Operating Temp (°C)-40 ~ 85
Package5-WLCSP
