Current Sensor Simulator
Estimate the magnetic field and output voltage for Hall IC current sensing placement
C-Core Magnetic Circuit Simulator
Simulate the magnetic circuit of a C-core transformer and estimate the Hall sensor output voltage.

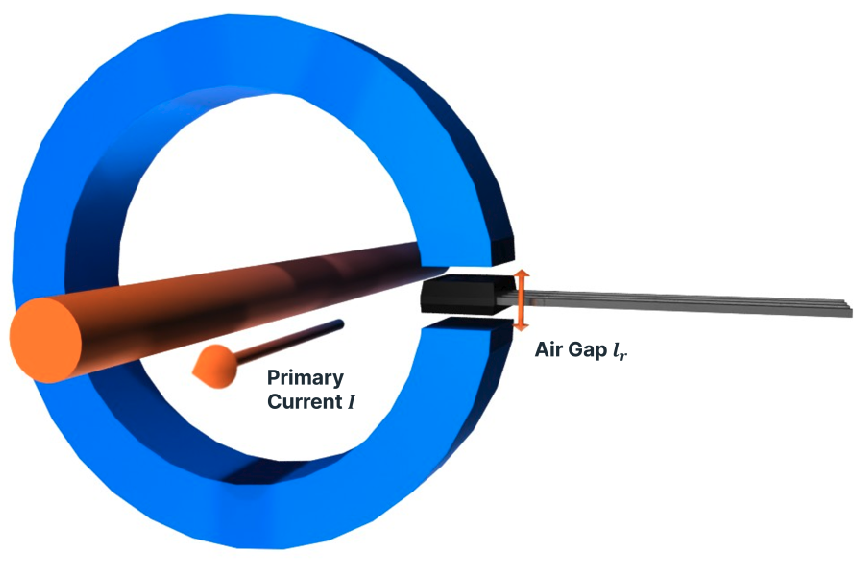

The magnitude of the magnetic field (B) within the air-gap of a C-core can be calculated using the simplified magnetic circuit equation:
B = Iμ₀lr
Where:
- B : magnetic flux density [T]
- I : primary current [A]
- μ₀ : permeability : 4π × 10⁻⁷ [H/m]
- lr : Air-gap length [mm]
Primary Inputs
A
mm
Sensor Preset
mV/G
V
B-Field at Sensor
31.42G
Vout Estimate
2.594V
0 V5.0 V
Output Status
OK
Model
Valid
Formula: B = μ₀ × I / lr | Vout = Vref + (Sens × B / 1000)
V1 estimation-grade model (quasi-static). No FEM analysis, no safety sign-off. Results are indicative only.
Output Voltage vs. Current
