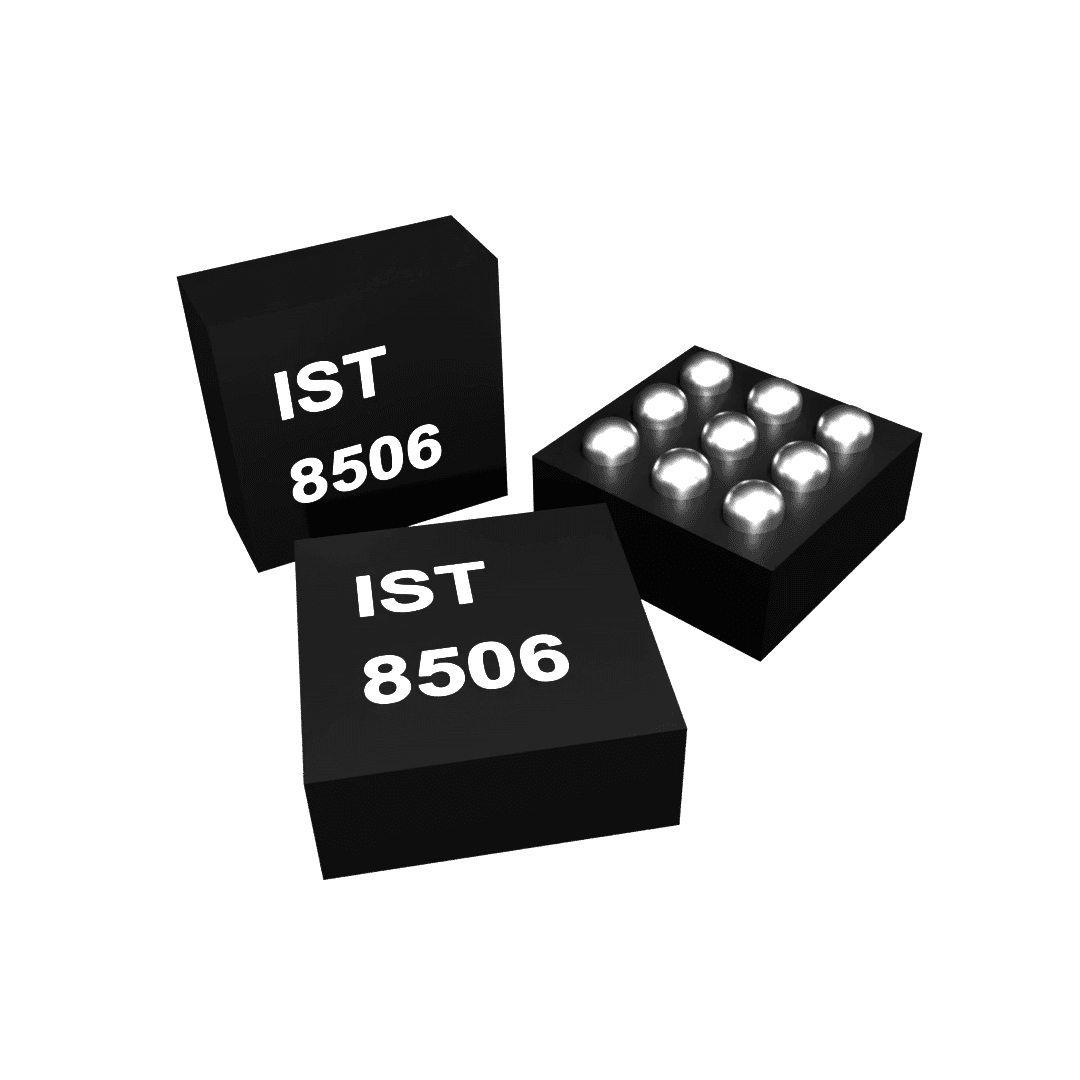

3D Programmable Hall Switch

IST8506 is a compact, low-power, 3D Hall-effect switch sensor designed for precise magnetic field detection along the X, Y, and Z axes. It features 3 independent interrupt outputs, each programmable for event detection.

Parameters

VDD (V)1.7 - 3.6

Max ODR (Hz)4000

Operating Temp (°C)-30 ~ 85

Package9-WLCSP

Power Cons. (typ.)20 µA @ 10Hz

Out. TypePush-pull, Open-drain

BOP – BRP (mT)Programmable
