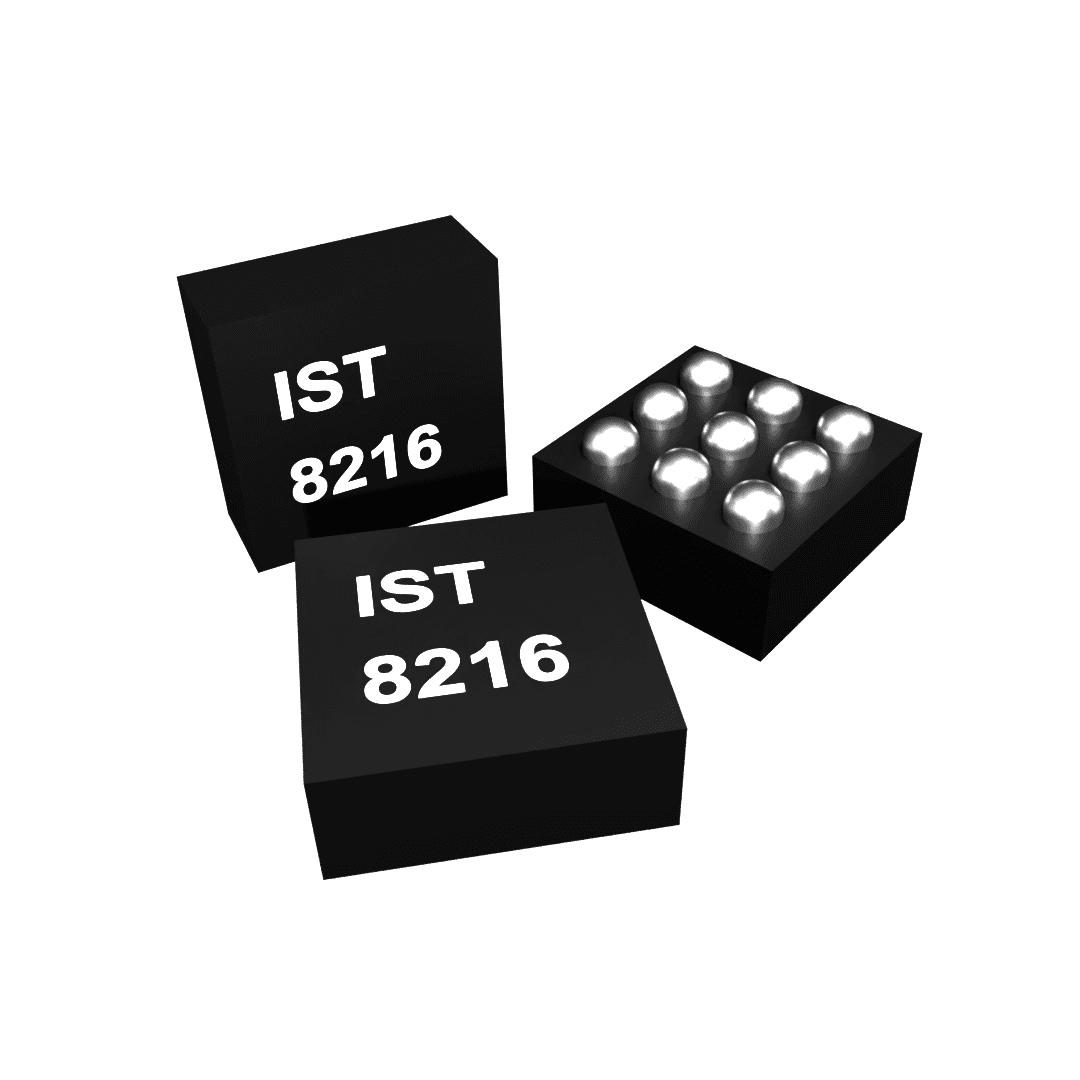

IST8216
Preliminary
3D Hall Angle Sensor
IST8216 is a high-precision, 3-axis angle sensor designed to measure magnetic fields and compute absolute 3D orientation. It features built-in angle calculation with automatic calibration, automatic speed regulation, and interrupt functionality.
Parameters
VDD (V)1.7 - 3.6
Resolution (µT/LSB) 6.1
IDD (µA)3000 µA @ 1 KHz
Magnetic Range (mT)200
Max ODR (Hz)1000
InterfaceI2C, PWM, SPI, ABZ
Operating Temp (°C)-40 ~ 85
Package9-WLCSP
