3D AMR/Hall-effect Switch

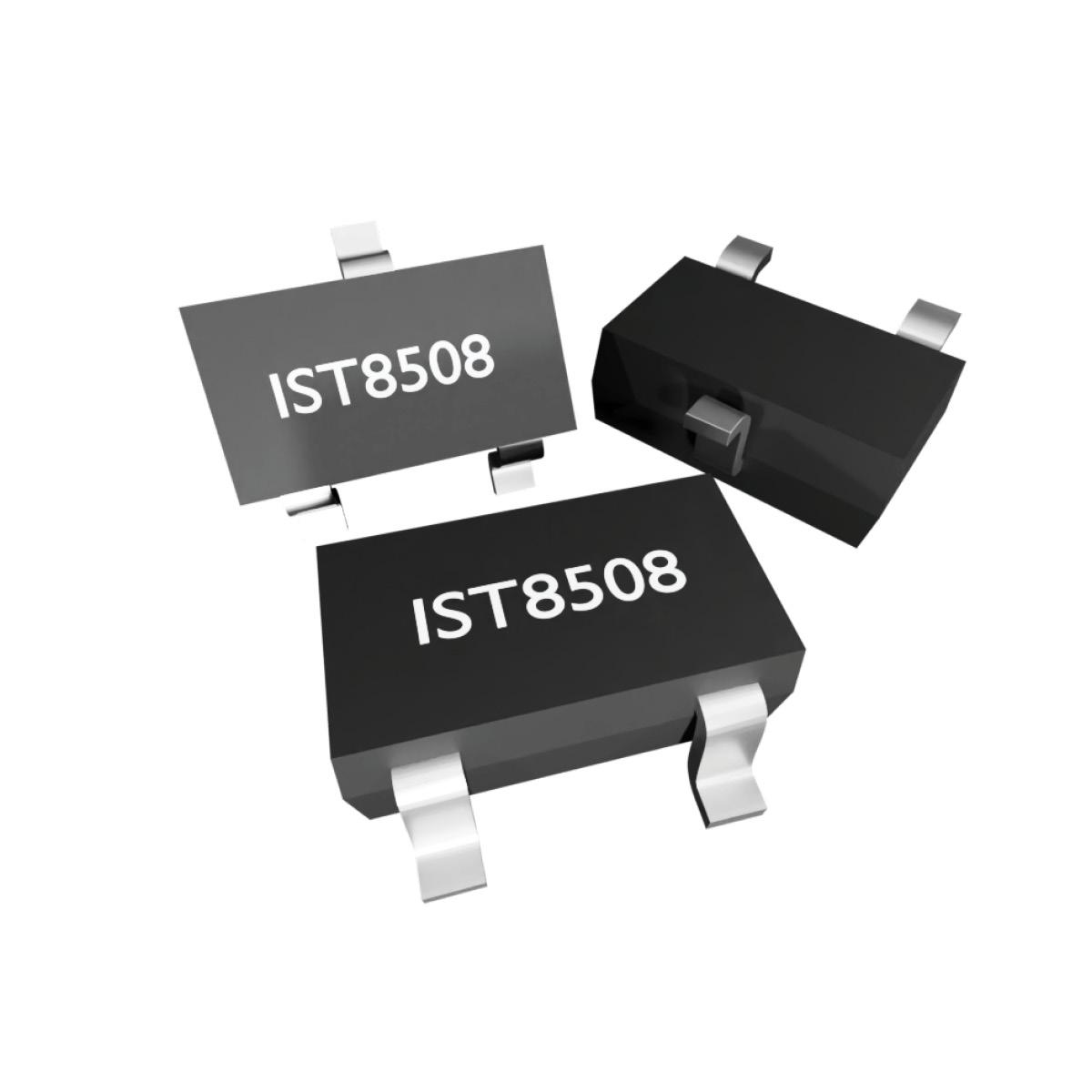

IST8508 is a high-speed, 3D omni-polar magnetic switch IC designed for industrial-grade magnetic sensing applications. It integrates advanced Anisotropic Magnetoresistive (AMR) and Hall-effect sensors to accurately detect magnetic fields across all three spatial axes (X, Y, and Z).

View Datasheet

Parameters

VDD (V)2.5 - 5.5

Max ODR (Hz)24000

Operating Temp (°C)-40 ~ 85

PackageSOT-23

Power Cons. (typ.)2.5 mA

Out. TypeOpen-drain

BOP – BRP (mT)±1.8 – ±1.4
