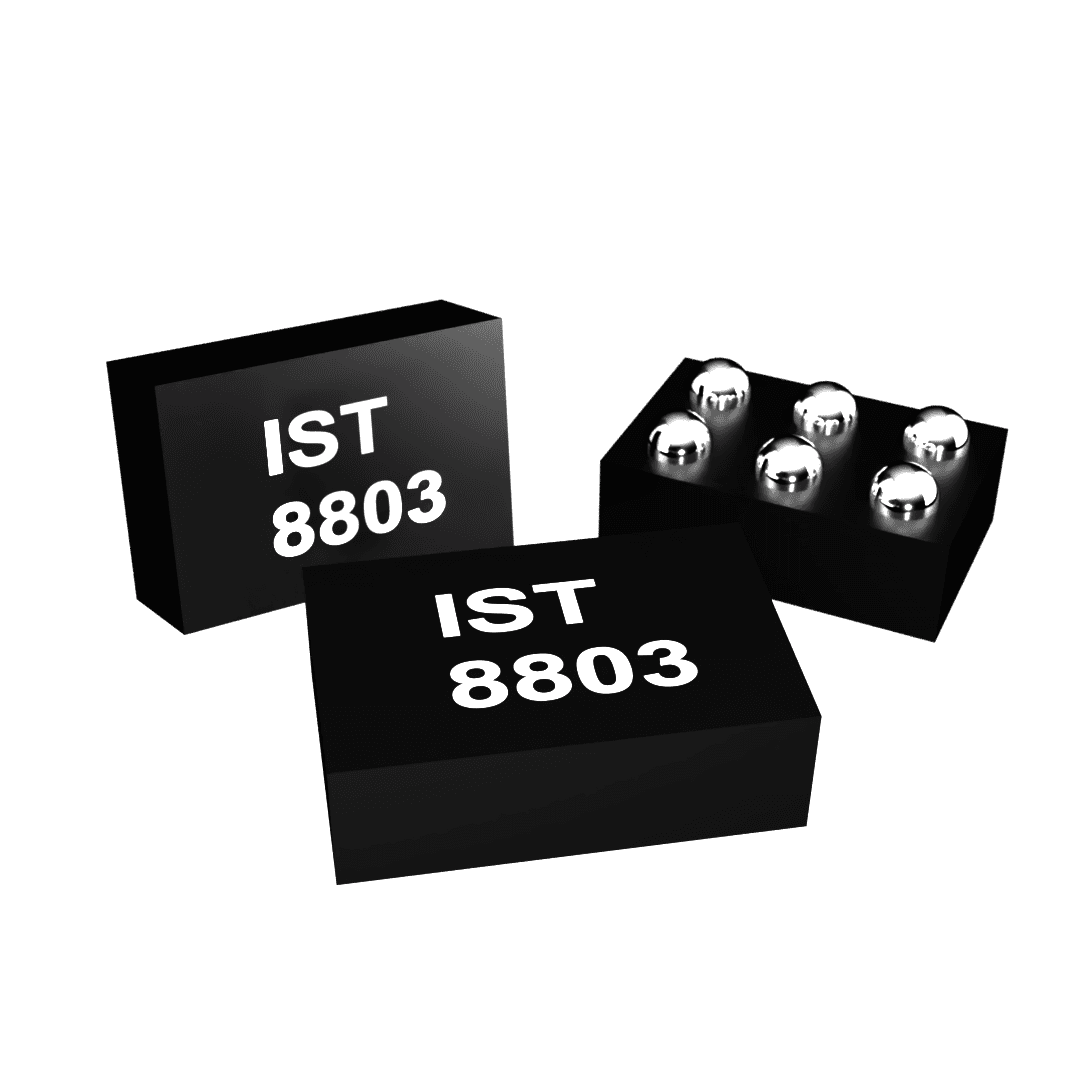

IST8803
Preliminary
Digital Linear Hall Sensor with Programmable Switch
Low-power digital linear Hall sensor featuring an integrated 16-bit ADC, I2C fast mode plus interface, programmable magnetic threshold switching, and ultra-low active (26 µA) and standby (1.3 µA) current consumption
Parameters
VDD (V)1.7 - 3.6
Magnetic Range (mT)±40.96 mT (up to ±163.84 mT in High Dynamic Range Mode)
Power Cons. 26 µA @ 50 Hz
Max ODR (Hz)4000
InterfaceI2C
Operating Temp (°C)-30 ~ 85
Package6-WLCSP
