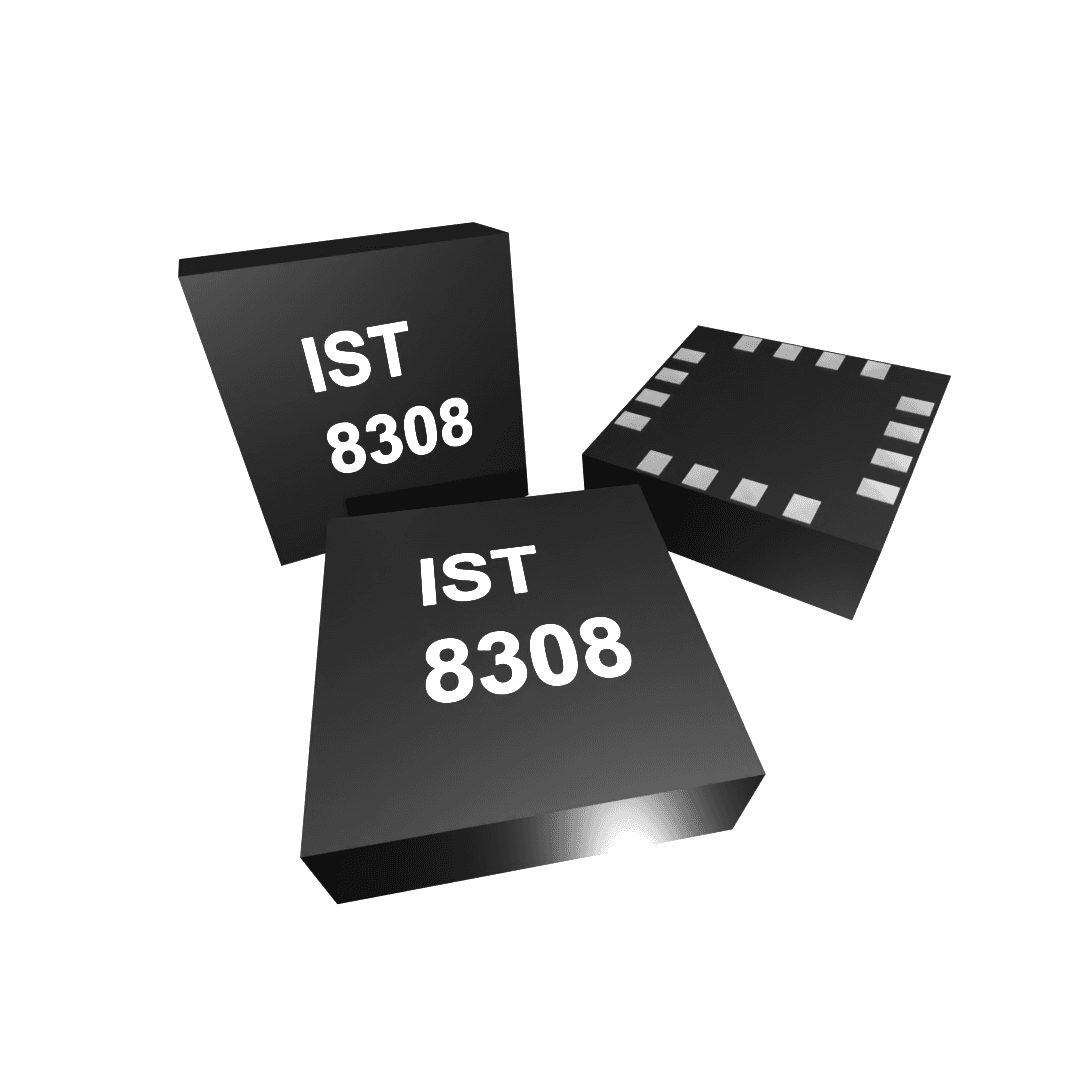

IST8308
Active
High-Precision 3D AMR Magnetometer (eCompass)
A highly reliable, planarized 3-axis AMR magnetometer featuring I2C digital output, integrated temperature compensation, and self-test functionality.
Parameters
Magnetic Range (mT)0.5
VDD (V)2.4 - 3.6
IDD (µA @ 50Hz)520
Sensitivity (LSB/µT)13.2
Max ODR (Hz)200
Resolution (bits)14
InterfaceI2C
Operating Temp (°C)-20 ~ 125
Package16-LGA
