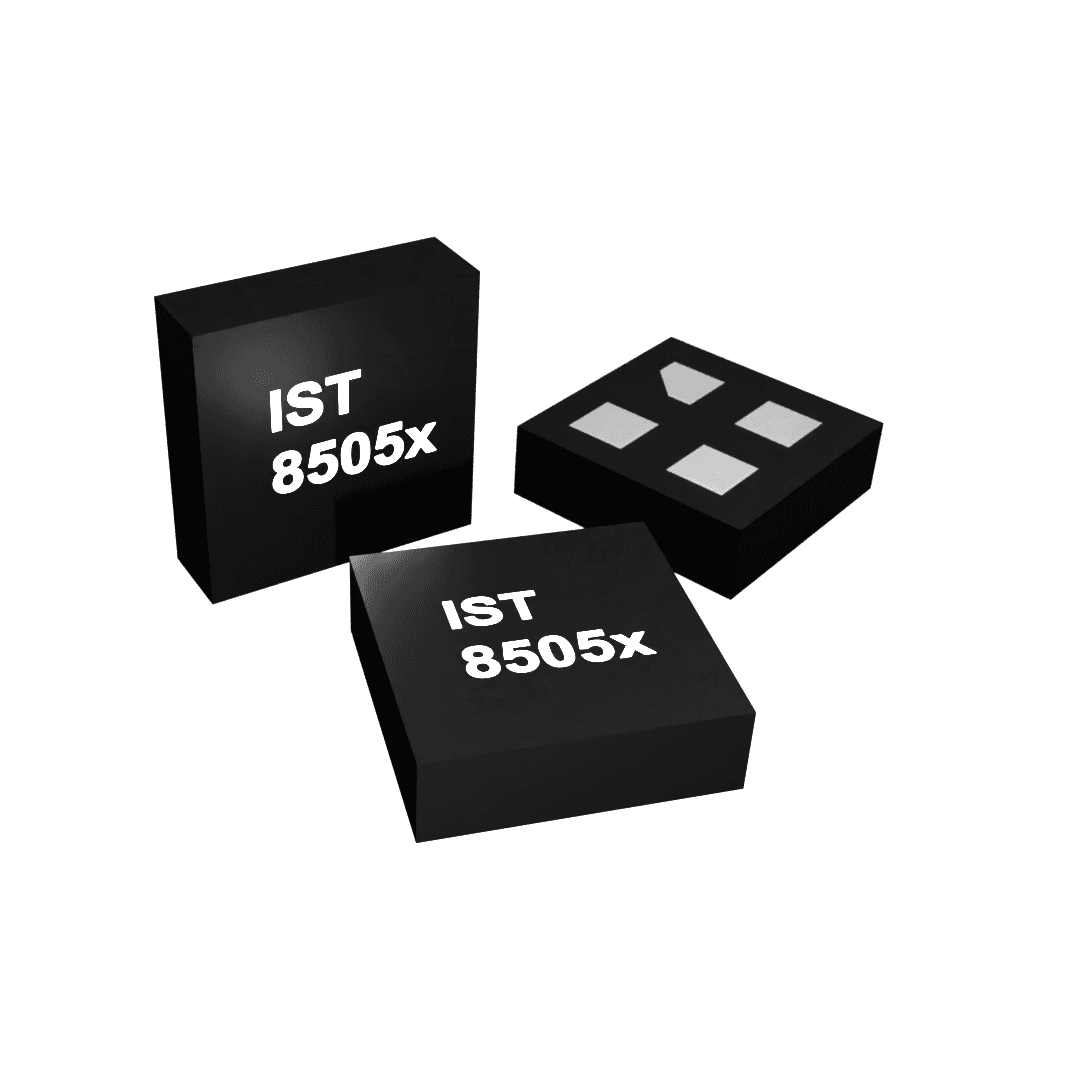

IST8505H4
Active
IST8505x series is a family of advanced omnipolar Tunneling Magnetoresistive (TMR) switches, optimized for ultra-low power magnetic sensing applications requiring reliable digital output and strong drive capability. Each device integrates a high-sensitivity TMR sensor, precise analog signal processing, and a low-power oscillator, providing stable switching performance across a wide supply voltage range.
Nanopower Omnipolar TMR Switch with Anti-Magnetic Shielding
Parameters
VDD (V)1 - 3.6
Operating Temp (°C)0 ~ 0
Sens. DirectionX-axis
Typ. Power Cons. (nA)49
Frequency (Hz)4
BOP (mT)±0.7
Package4-LGA
BRP (mT)±0.3
Temp. Range (°C)-40 – 85
Out. TypePush-pull
